KalaXY Dual Mandrel Rewinder
$8,495.00
Unit price
/
Unavailable
300.0 lb
Delivery and Shipping
Delivery and Shipping
Need it fast? We ship Via UPS Ground, 2nd Day and Overnight.
KalaXY Dual Mandrel Rewinder
$8,495.00
Unit price
/
Unavailable
Have a Question?
Contact Us At 954-530-1316 or orders@epssignsupply.com

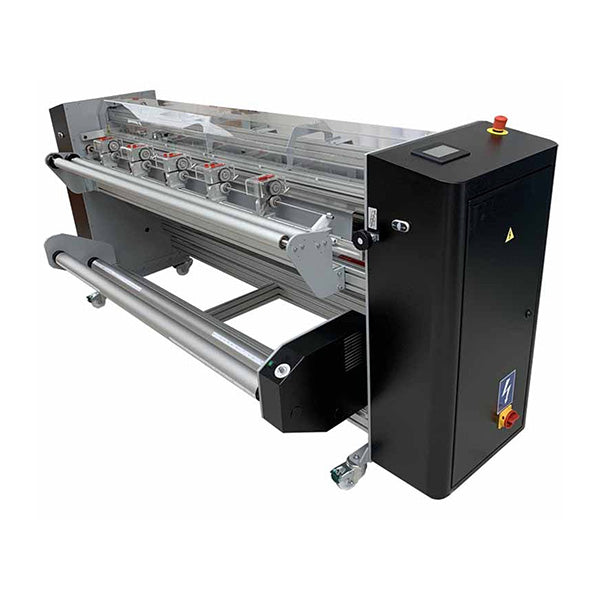

The KalaXY Dual Mandrel Rewinder is a take up system designed specifically for use with all KalaXY Automatic XY Cutters and Trimmers. The device offers an efficient solution for rewinding cut rolls onto either a 3" or 2" core. Designed for taking up digital wallcoverings, wallpaper, banners, fleet graphics, or any other long run job.
| Specifications | |
|---|---|
| Maximum media width | 65" or 82" |
| Maximum rewinding speed | 60 feet per minute |
| Maximum amount of "Y" blades | 16 blade holders |
| Maximum roll diameter, production roll | 8" |
| Maximum diameter, parent roll | 10", Jumbo unwinder required for larger rolls |
| Core diameter | 3" or 2" |
| Y Blade Trimming accuracy | +/- .2mm* |
| Cross cutting accuracy | +/- 1mm* |
| Maximum medium thickness | 1mm* |
| Maximum roll weight | 110 Lbs, Jumbo unwinder required for larger rolls |
| Power requirements | 110V / 1200 W or 230V / 50Hz - 60Hz |
| Power adapter | Plug L6-30P, Receptacle L6-30R |
| Working environment | 41°f to 95°f |
| Dimensions of the machine | Dependent on KalaXY machine adapted to |
| Weight | 300 Lbs. |
